Products > Graphic LCD > > Low Price White on Blue 128x64 dots LCD Display
Low Price White on Blue 128x64 dots LCD Display
Low Price White on Blue 128x64 dots LCD Display Low Price White on Blue 128x64 dots LCD Display Low Price White on Blue 128x64 dots LCD Display Low Price White on Blue 128x64 dots LCD Display
Product name : Low Price White on Blue 128x64 dots LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This white on blue background 128x64 pixel COG graphic LCD display module has an integrated Sitronix ST7567 controller. The graphic LCD is very low power to drive the display.

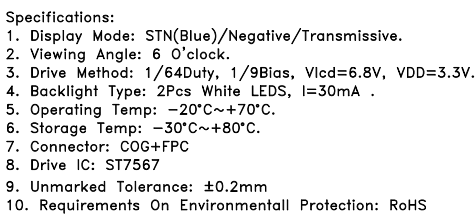

General Specification

Low Price White on Blue 128x64 dots LCD Display

Resolution

128*64

Outline Size

59*44.3 mm

Viewing Area

54.2* 32.5 mm

Active Area

47.96*26.5 2mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

2PCS WHITE LEDS, 3.3V 15mA

Display Mode

STN/Transmissive/Negative

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ TO + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

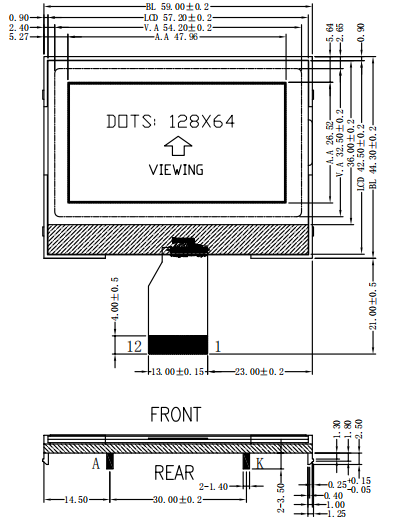

LCD drawing

Image Details

FAQ

1.Why choose Enrich?

1) Enough industrial experience and involved main markets all over the world.

2) Precise and advanced equipment.



2.What can we do for you?

Please share with us your requirements.



3. What is the LCD application?

House hold device, smart wearable device, medical electronics, instrumentation, etc.
