Products > Graphic LCD > > Small 132x32 Graphic LCD Display

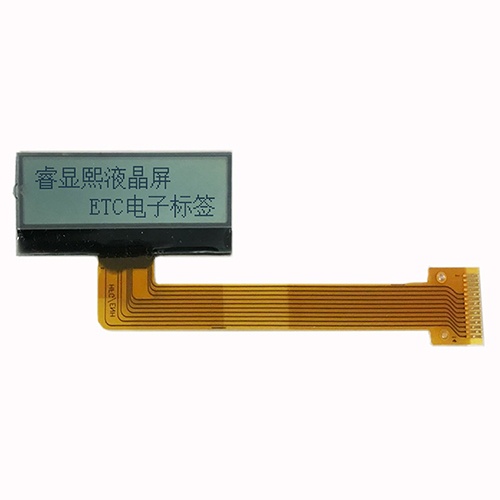

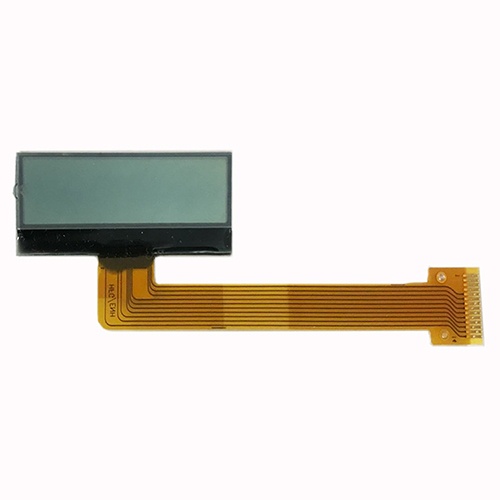

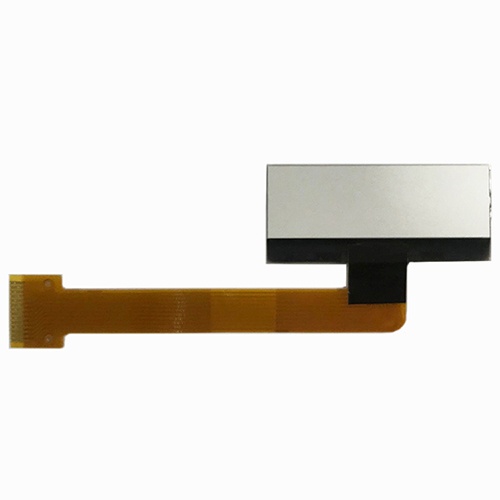

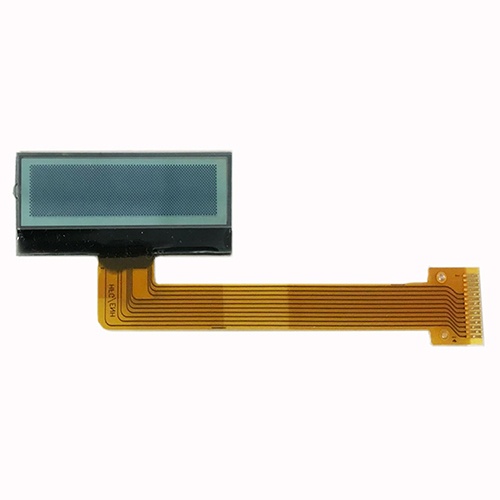

Small 132x32 Graphic LCD Display
Small 132x32 Graphic LCD Display Small 132x32 Graphic LCD Display Small 132x32 Graphic LCD Display Small 132x32 Graphic LCD Display
Product name : Small 132x32 Graphic LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



For all of our LCD displays, our design engineers have collected many lcd controller datasheets while vetting different display controllers and chipsets. We've added them here to make it easy for you to be able to work with these different controllers and chipsets. These LCD datasheets are not created or maintained by Crystalfontz; they are supplied simply "as is" for your use.

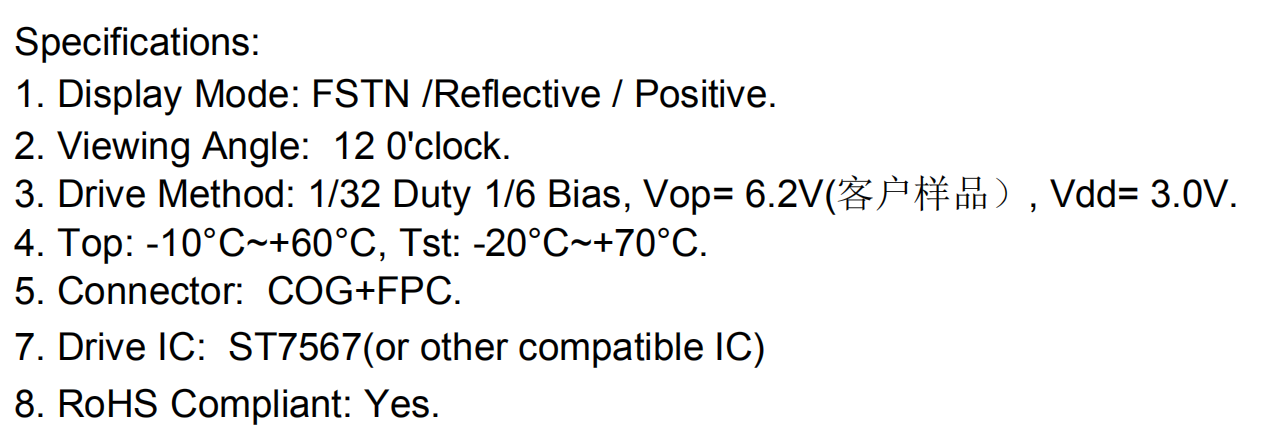

LCD Functions & Features

Small 132x32 Graphic LCD Display

Outline Size

34.5x15 mm

View Area

31.9x9.5 mm

Active Area

29.02x7.02 mm

Display Resolution

132x32

Display Mode

FSTN/Reflective/Positive

View Angle

12:00

Drive Method

1/32 duty, 1/6 bias

VOP

6.2V

VDD

3.0V

TOP

-10 - +60

TST

-20- +70

Connector

COG+FPC

Driver IC

ST7567(or other compatible IC)

RoHS Compliant

Yes

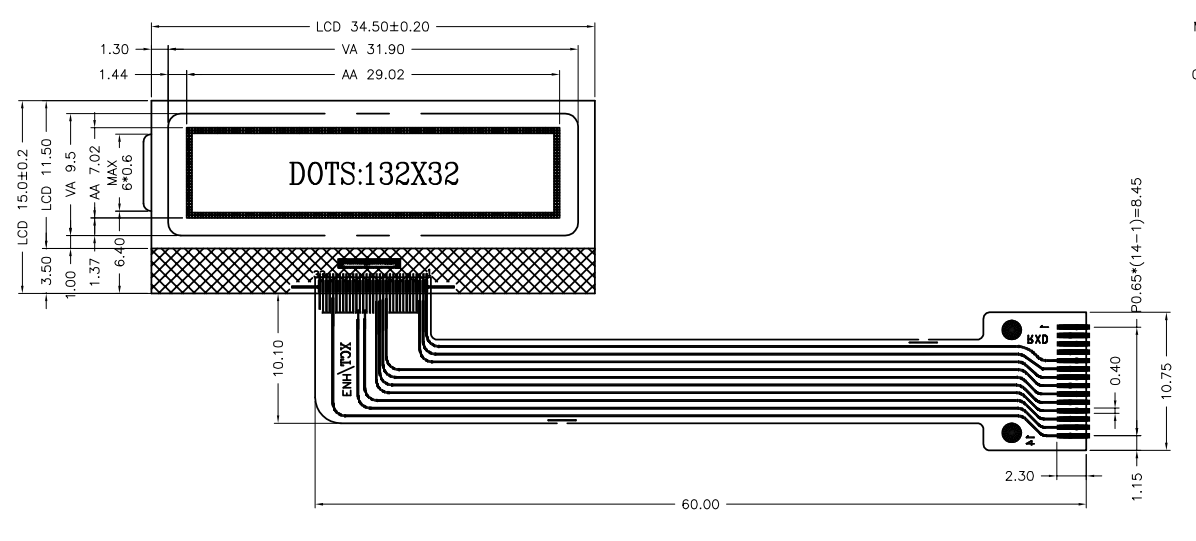

Physical Size

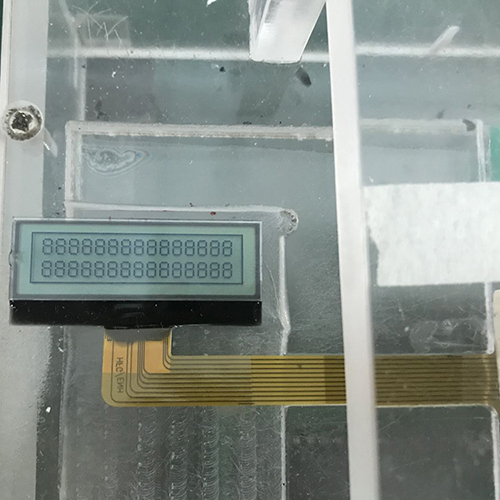

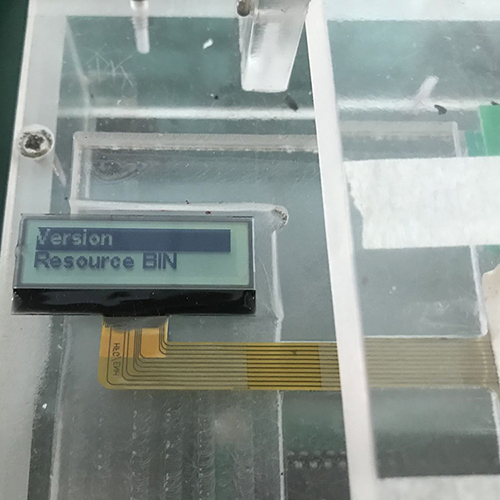

Image Details

Application of Our LCD Panels:

Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.



More tft lcd model detail information including size, resolution, brightness, operating temperature or life time etc in contact me please.

Why Choose Us?

# More than 6 years’ experience of LCD display R&D and production.

# Highly trained and experienced LCD and LCM engineers will help you.

# Professional team who can efficiently provide the optimum display solution.
