Products > Graphic LCD > > 128x64 Dark on White Graphic LCD Display Module
128x64 Dark on White Graphic LCD Display Module
128x64 Dark on White Graphic LCD Display Module 128x64 Dark on White Graphic LCD Display Module 128x64 Dark on White Graphic LCD Display Module 128x64 Dark on White Graphic LCD Display Module
Product name : 128x64 Dark on White Graphic LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description

We designed this 45.4 x 40 graphic LCD display module so it fits on the face of 2-inch wide devices such as blade servers, disk drive carriers, and expansion cards. The 2-inch width leaves room for the metalwork and mechanical clearance. This economical COG (Chip-On-Glass) FSTN transflective display is suitable for typical office lighting and is easy to see in dimly lit areas.



To make prototyping or small production with this display quick and easy, we offer the CFAO4265A-TTL mounted on a carrier board. The carrier board has the current-controlled, switching LED driver, including SPI control of the LED brightness. All external components for panel voltage generation are included.

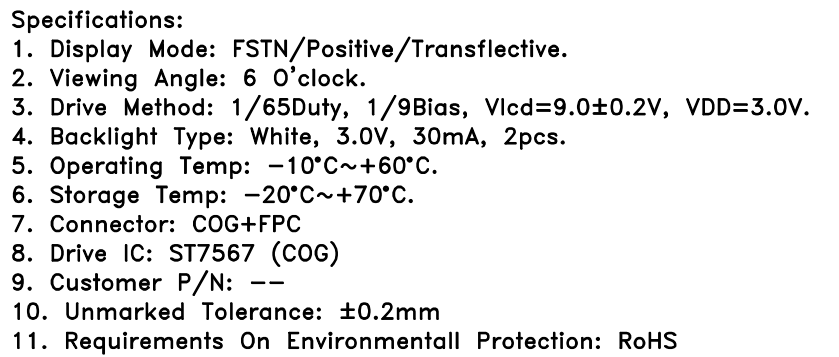

Key Features

128x64 Dark on White Graphic LCD Display Module

Resolution

128*64

Outline Size

45.4*40 mm

Viewing Area

42.38*31.5 mm

Active Area

38.38*29.42 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

WLED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

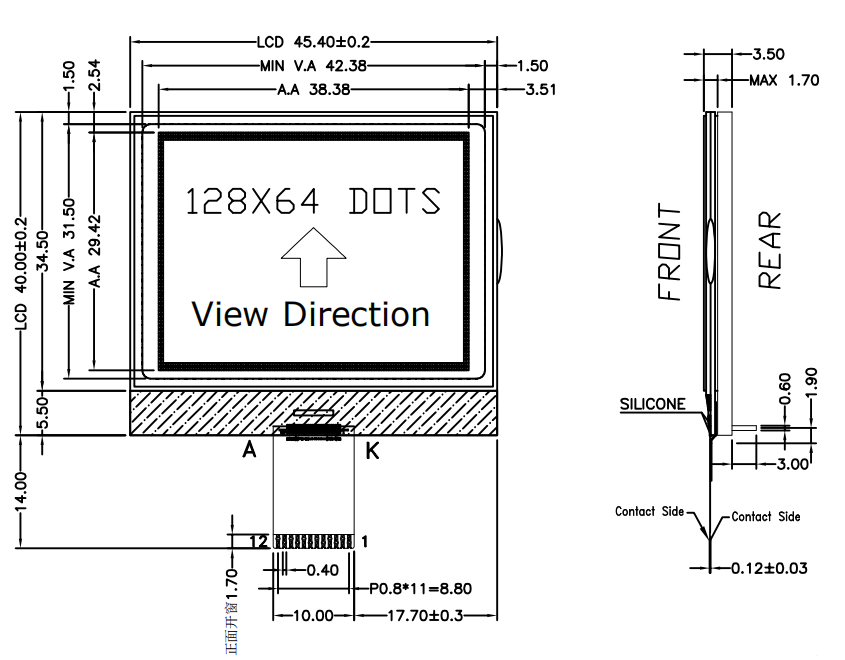

LCD Drawing

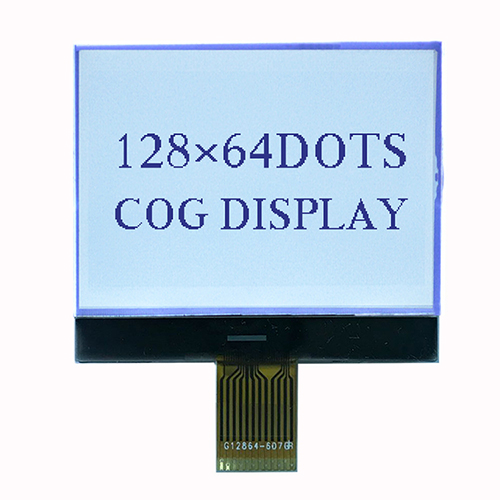

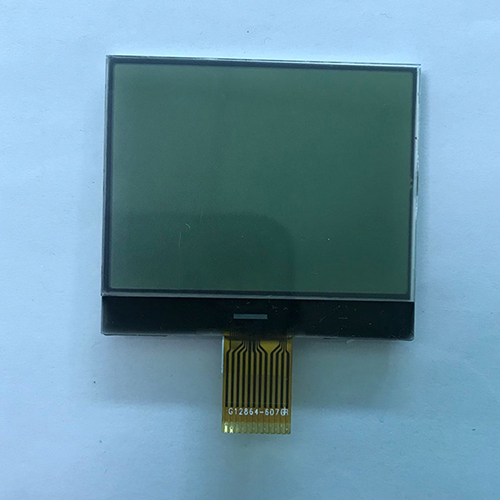

Image Details

FAQ

1.How can I get the samples?

Please send your inquiry details for us, then we will quote on the product for your reference, and then confirm the payment and drawing details by your side, when samples finished will be delivery via air.

2.How long can I get the samples?

Samples time will be take 5-7 working days.

3.Will you offer free samples?

Yes, we will provide 5-10 free samples, you just need to pay the tooling cost.

4.How to place an order?

After samples confirmed, please send us your purchase order by email, then we will send you an invoice for payment.

5. How long of mass production?

25-35 working days. It depends on the different quantity and module number.


Application

1)ETC electronic tag

2)Meters & Instrument

3)Telecommunication

4)Domestic Electrical Appliance

5)U Shield

6)Office equipment

6)Medical & health equipment

7)3D & Shutter

8)Auto electronics

9)Fuel dispensers
