Products > COB > > 320x240 Chinese LCD Display Module

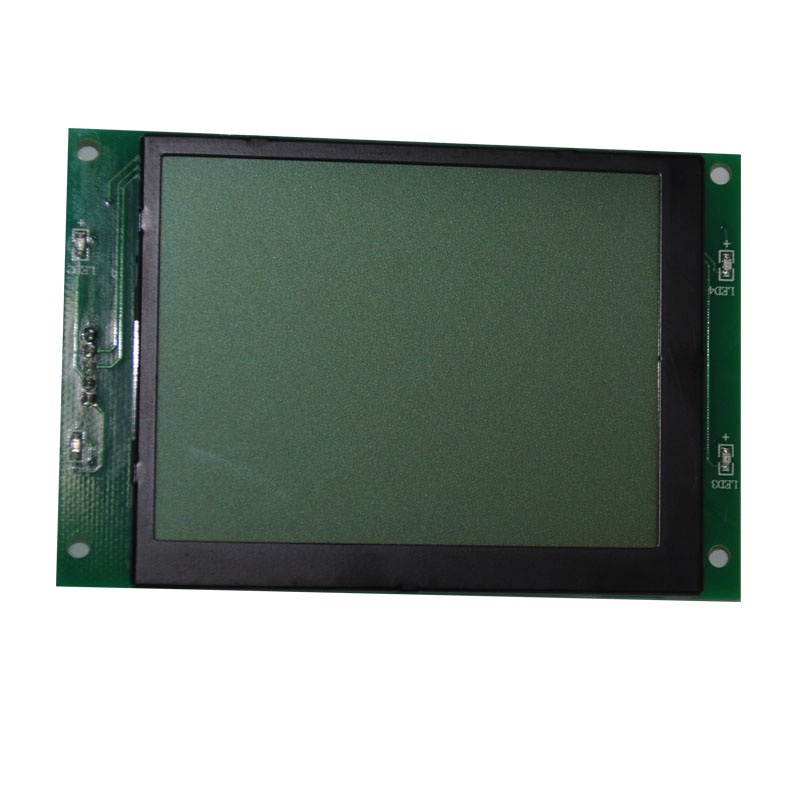

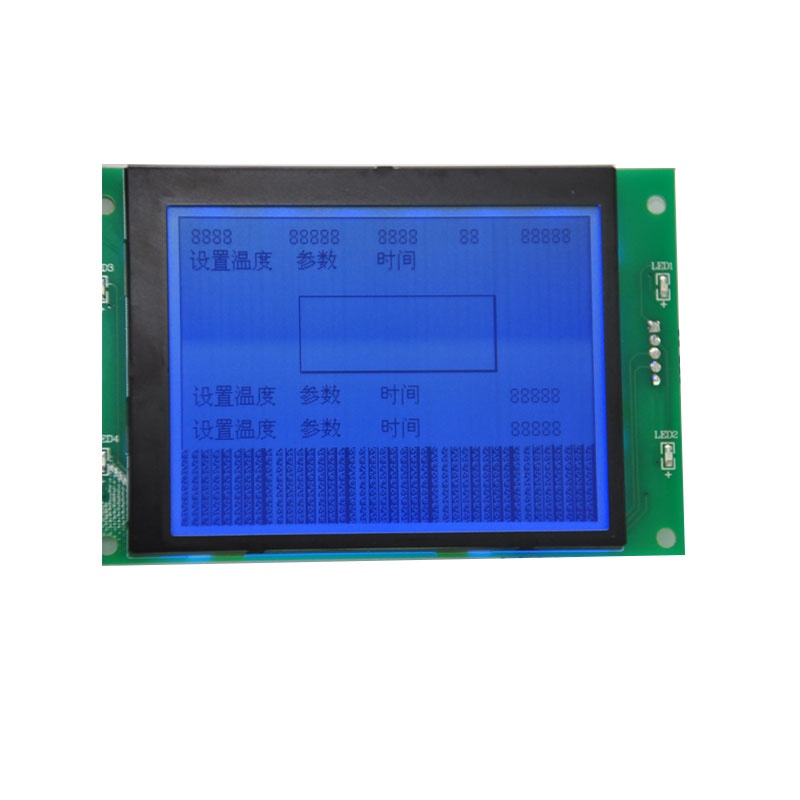

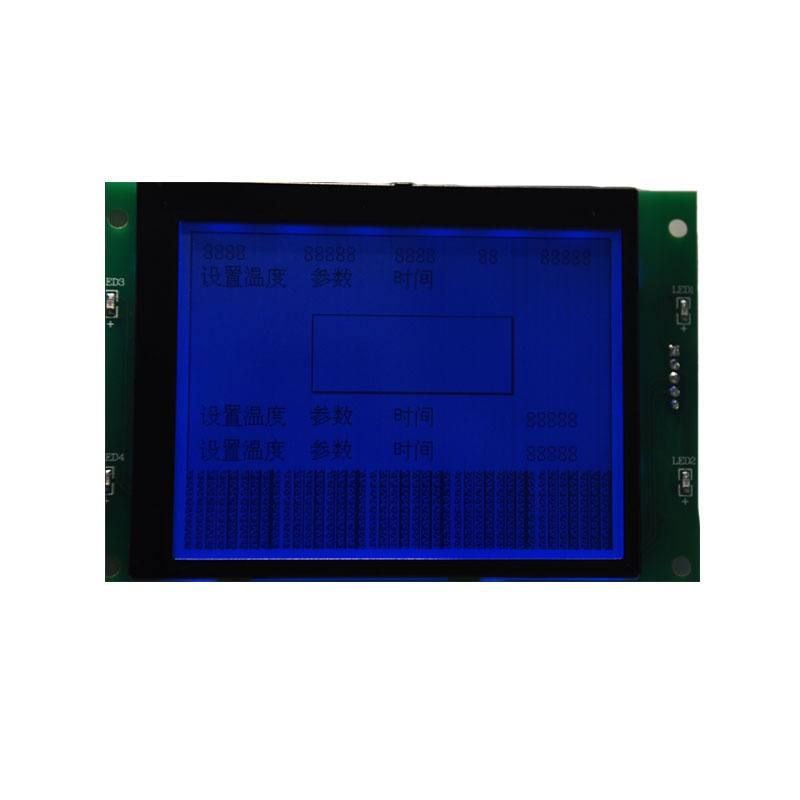

320x240 Chinese LCD Display Module
320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module
Product name : 320x240 Chinese LCD Display Module
             [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Enhance your product with the addition of our COB LCD module. This display module has 320 x 240 resolution and uses the single-chip RA8835AP3N driver.

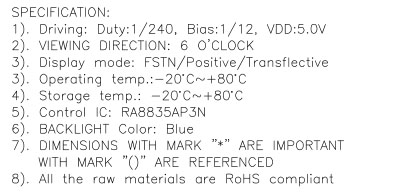

Specification

320x240 Chinese LCD Display Module

Resolution

320*240

Outline Size

110*73.3 mm

Viewing Area

80.5*61.1 mm

Active Area

76.78*57.58 mm

PIN Description

20 PIN

Driver IC

RA8835AP3N

Backlight

Blue

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/240 duty, 1/12 bias

Top

-20℃ TO + 80℃

Tst

-20℃ To + 80℃

RoHS Compliant

Yes

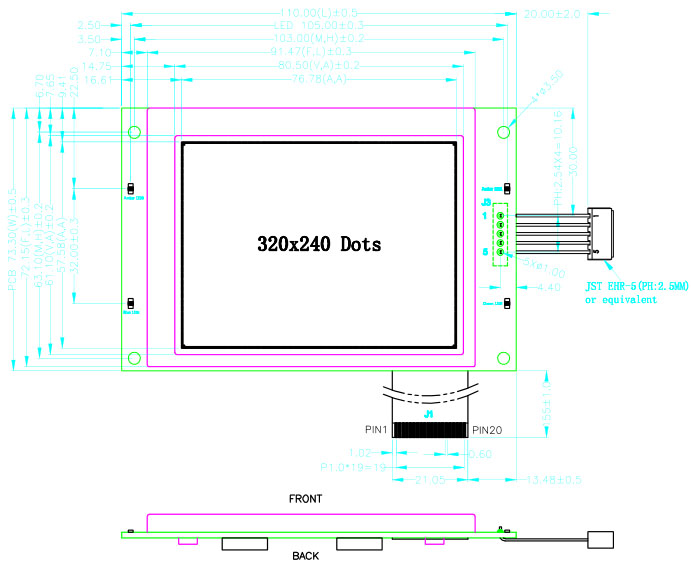

LCD Drawing
